Anson is an industry leader in laser cutting machine plotters and laser automatic contour plotters.

Quality Laser Plotter Machine Brand 50HZ-60HZ

Driving Motor:

Stepper motor

PC Interface:

RS232 serial port or USB

Laser Head:

Laser Mode:

Hollow, engraving, cutting, drawing

Power Supply:

AC220V/110V +/- 5%, 50HZ-60HZ

Inquiry

more products

Cutter Plotter

3D Printing Pen

Mini Heat Press Machine

Send your inquiry

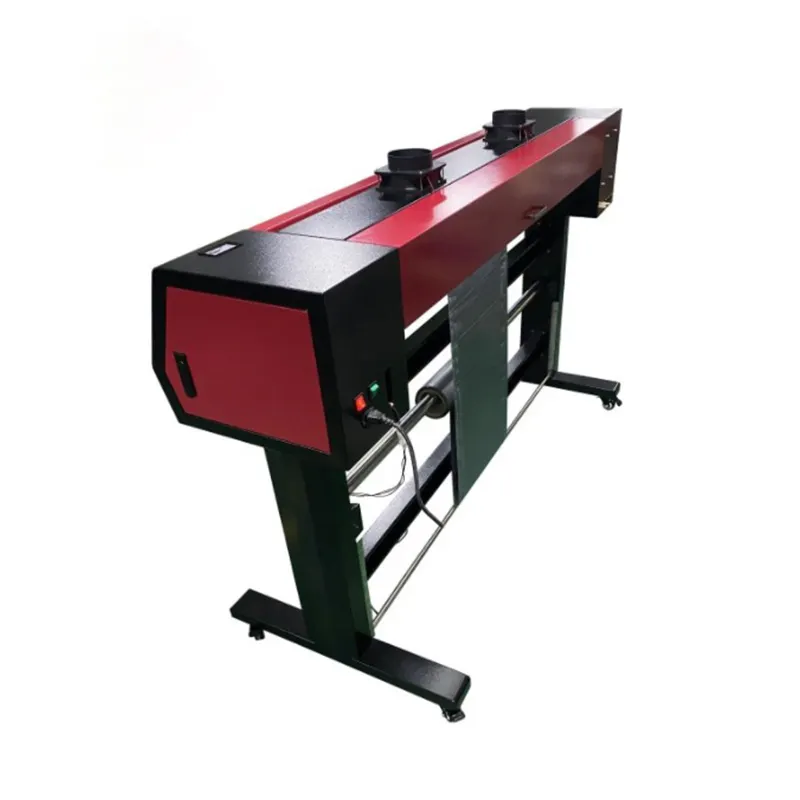

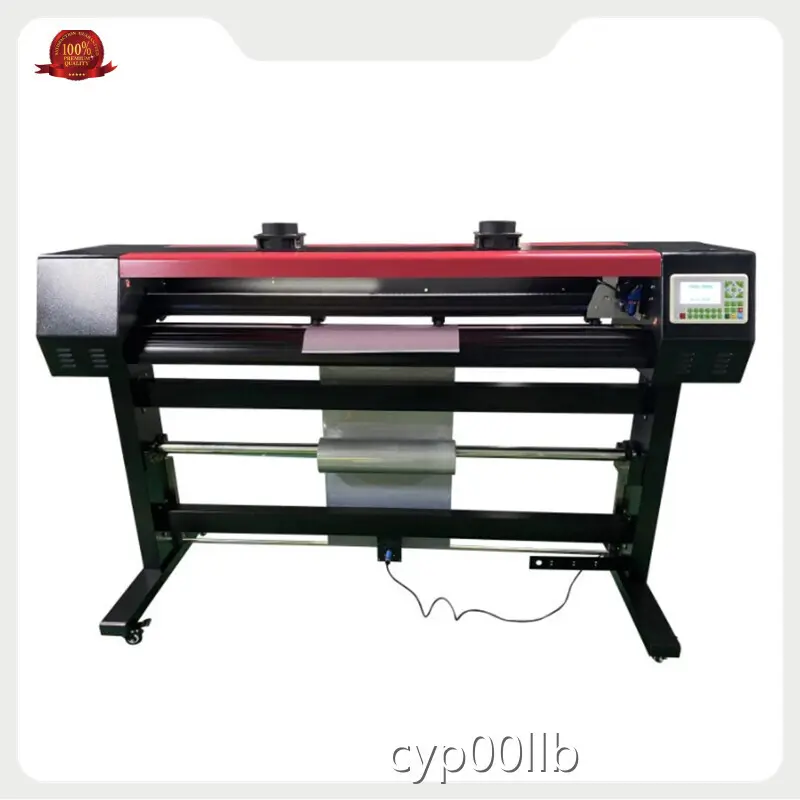

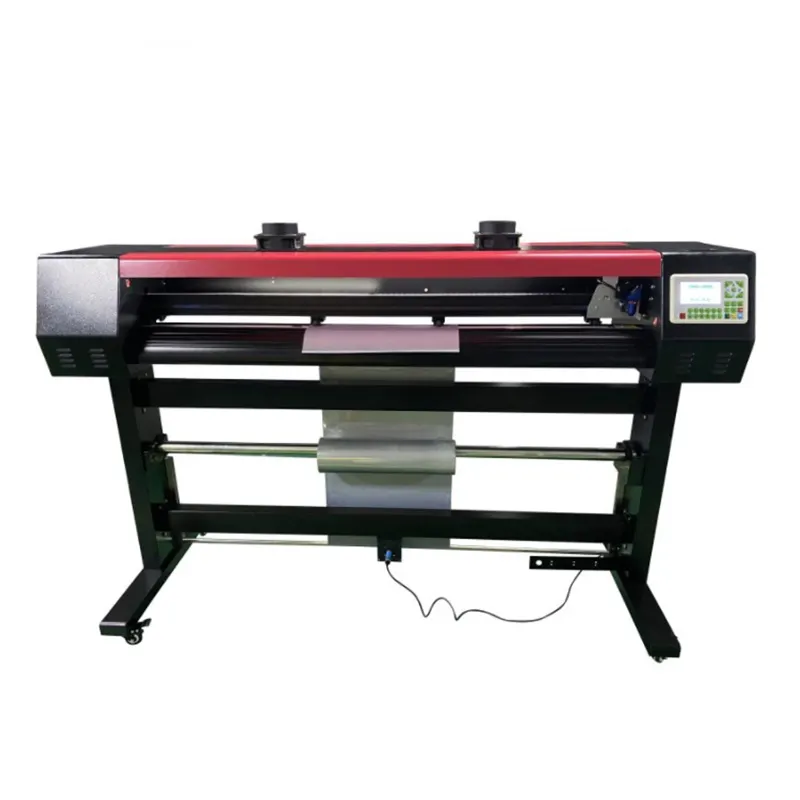

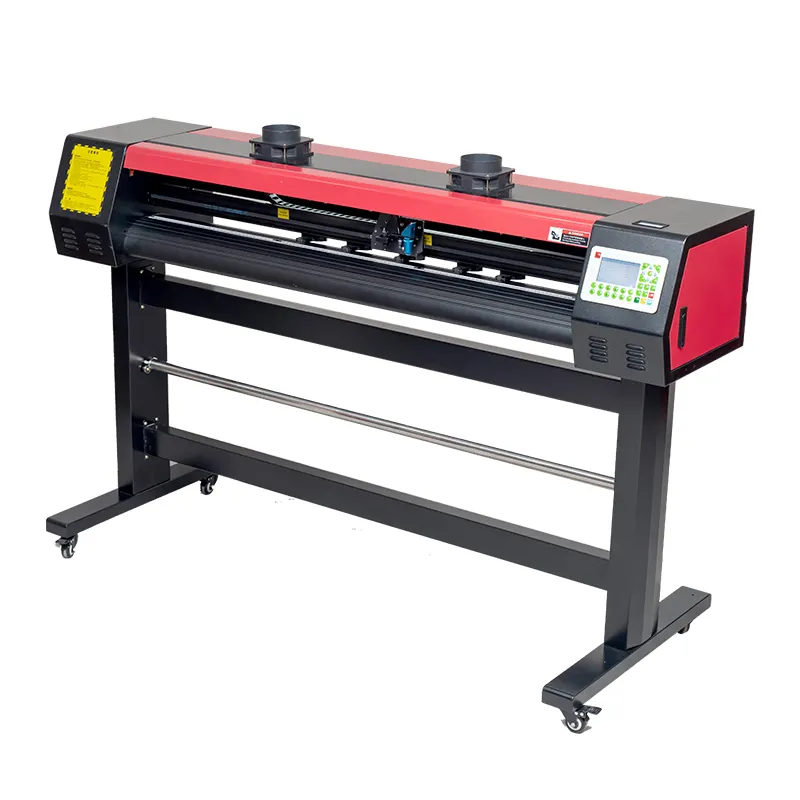

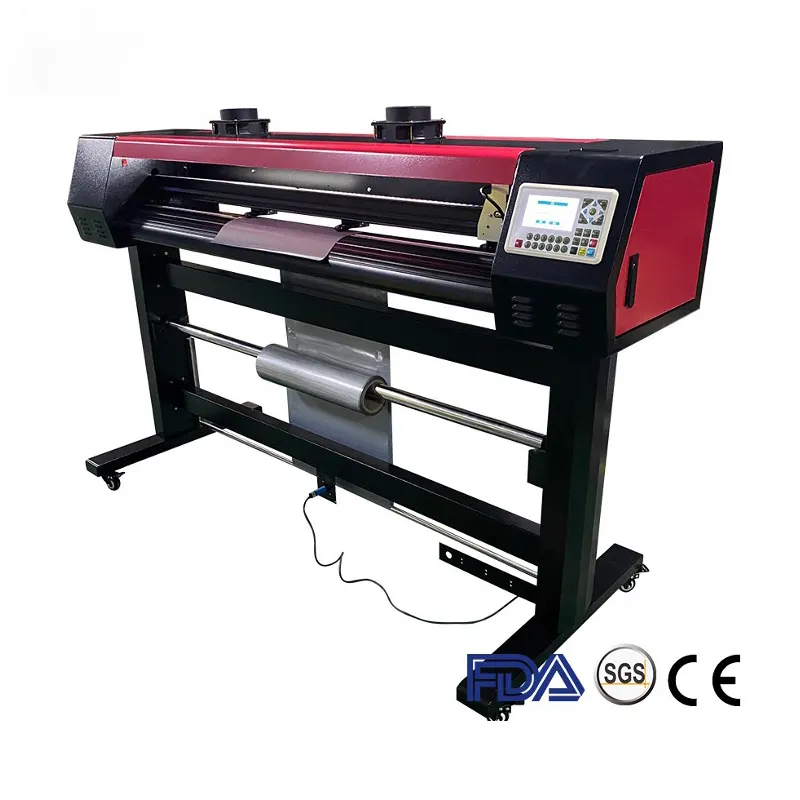

Product Display

Pro5-1

Pro5-3

Pro5-4

Product parameters

Model no.	HK-980 LASER	HK-1380 LASER	HK-1730 LASER
	HK-980 LASER AUTO	HK-1380 LASER AUTO	HK-1730 LASER AUTO
	HK-980 LASER PRO	HK-1380 LASER PRO	HK-1730 LASER PRO
	HK-980 LASER CCD	HK-1380 LASER CCD	HK-1730 LASER CCD
Max Feeding Width	980mm	1380mm	1730mm
Max Cutting Width	820mm	1220mm	1570mm
Driving Motor	stepper motor
PC Interface	RS232 serial port or USB
Laser Head	Designed by HAOKE
Laser Mode	Hollow, engraving, cutting, drawing
Blade	Roland standard blade
Power Supply	AC220V/110V +/- 5%, 50HZ-60HZ
Laser Tube Power	50W
Cutting Speed	Min.10mm/S ~ Max. 800mm/S
Cutting Pressure	Min. 10g ~ Max. 500g（Knife mode）
Resolution	0.0254mm/step
Repeat Accuracy	0.0127mm
Language Format	DM/PL compatible
Baud Rate	38.4K
Data Transmission	8 data bits, 0 parity bit, 1 stop bit
Control Panel	LCD display + key + switch + test + current regulation + current indication
Min Character	Chinese character: 3mm; letter: 2mm; (varies depending on character font and media)
Laser Current Range	0-20mA
Interface Type	Serial port/USB
Applicable Material	Soft and thin nonmetal material, such as paperboard, cutting vinyl
Applicable Range	Currently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc.
Floor Stand	Yes	Yes	Yes
Machine Size	1420mm700mm1060mm	1820mm700mm1060mm	2170mm700mm1060mm
Packing Size	1570mm535mm490mm	1950mm490mm450mm	2300mm490mm450mm
GW	70kg	85kg	100kg

Product Advantage

Accurate and fast cutting height

Our laser plotter for garment film is precisely designed to cut 1mm fabric films with a 50W laser power system. The high-powered laser ensures highly accurate and fast cutting of any garment films, making it the perfect choice for all your fabric cutting needs.

Able to achieve perfect design and effects

Laser plotters are ideal for mini character cutting on thin vinyl due to their precision and accuracy. Tiny details can be easily and accurately cut on incredibly thin vinyl, allowing for perfect designs and results every time.

Laser plotters use a focused beam of light to cut through t-shirt films with extreme precision, creating eye-catching designs that stand out above the rest. With the versatility to cut through different vinyl /film and the speed to produce unique pieces quickly, laser plotters are the ideal tool for creating custom garments.

Product features

Speed up production quickly with this plotter.

High-powered 50W laser

Fabric Film Cutting plotter

Streamline garment manufacturing.

Faqs

Q: Are you trading company or factory?

A: We are trading company with our own factory.

Q: How long is your delivery time?

A: It is according to your quantity. if you just want to buy one set sample .it needs 1-3 working days .if the goods are in stock. or it is 4-5days if the goods are not in stock.

Q: Do you provide free sample ?

A: No, we could offer the sample but you should pay the cost of freight/sample.

Q: How about the shipping mode?

A: by express/air/sea/train both ok.as per the buyer request to delivery. you know the machine freight charge is higher. in general , we just suggest the buyer can accpet the sea shipment.

Q: How about the freight?

A: You can find the forwarder agent by yourself ,if you have not, we can quote the cheaper freight charge for you.

Q: How to order?

A: You can contact with us by email or calling us, we can make the PI to you.

Q: What is your terms of payment ?

A: Payment<=$30000, 100% in advance. Payment>=$30000, 50% T/T in advance ,balance before shipping. If you have another question, pls contact us .

Company Advantages

· Rich and varied design structures enable customers more selection to buy laser plotter machine.

· The product has strong points of softness and smoothness. Some chemical softeners were put into the fabric to soften the solid substances.

· The product helps create a spacious feeling that is perfect when people want to relax and unwind at the end of a long day.

Company Features

· Equipped with highly advanced technology, is good at producing laser plotter machine with competitive price.

· Since the beginning of its operation, focuses in supplying high end laser plotter machine manufacturing equipment for itself.

· In an effort to achieve environmental sustainability, we strive hard to make advancements in upgrading our original production model, including resource utilization and wastes treatment.

Application of the Product

laser plotter machine can be applied to different fields.

With a focus on customers, analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
