Anson is an industry leader in laser cutting machine plotters and laser automatic contour plotters.

Anson is an industry leader in laser cutting machine plotters and laser automatic contour plotters.

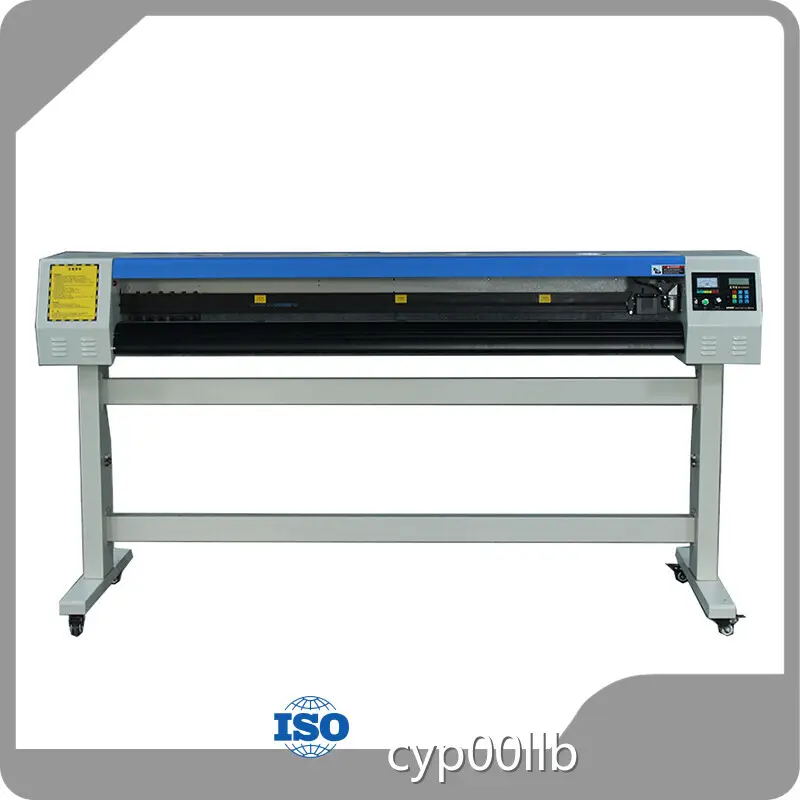

Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 1
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 2
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 3
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 4
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 5
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 1
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 2
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 3
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 4
Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB 5

Laser Plotter Machine 50HZ-60HZ Designed by HAOKE Brand RS232 Serial Port Or USB

Driving Motor:
Stepper motor
PC Interface:
RS232 serial port or USB
Laser Head:
Designed by HAOKE
Blade:
Roland standard blade
Power Supply:
AC220V/110V +/- 5%, 50HZ-60HZ
Inquiry

Company Advantages

· laser plotter machine is innovatively designed by our designers who have rich expertise in the industry.

· The product features spacious compartments. It has a thick, well stitched inner lining that allows it to endure the weight.

· Professional and thoughtful customer services are provided by

Product Display

Pro3-1
Pro3-1
Pro3-2
Pro3-2
Pro3-4
Pro3-4

Product parameters

Model no. HK-980 LASER  HK-1380 LASER  HK-1730 LASER
HK-980 LASER AUTO HK-1380 LASER AUTO HK-1730 LASER AUTO
HK-980 LASER PRO HK-1380 LASER PRO HK-1730 LASER PRO
HK-980 LASER CCD HK-1380 LASER CCD HK-1730 LASER CCD
Max Feeding Width 980mm 1380mm 1730mm
Max Cutting Width 820mm 1220mm 1570mm
Driving Motor stepper motor
PC Interface RS232 serial port or USB
Laser Head Designed by HAOKE
Laser Mode Hollow, engraving, cutting, drawing
Blade  Roland standard blade
Power Supply AC220V/110V +/- 5%, 50HZ-60HZ
Laser Tube Power 50W
Cutting Speed Min.10mm/S ~ Max. 800mm/S
Cutting Pressure  Min. 10g ~ Max. 500g(Knife mode)
Resolution 0.0254mm/step
Repeat Accuracy 0.0127mm
Language Format DM/PL compatible
Baud Rate  38.4K
Data Transmission  8 data bits, 0 parity bit, 1 stop bit
Control Panel LCD display + key + switch + test + current regulation + current indication
Min Character Chinese character: 3mm; letter: 2mm; (varies depending on character font and media)
Laser Current Range  0-20mA
Interface Type Serial port/USB
Applicable Material  Soft and thin nonmetal material, such as paperboard, cutting vinyl
Applicable Range Currently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc.
Floor Stand Yes Yes Yes
Machine Size 1420mm*700mm*1060mm 1820mm*700mm*1060mm 2170mm*700mm*1060mm
Packing Size 1570mm*535mm*490mm 1950mm*490mm*450mm 2300mm*490mm*450mm
GW 70kg 85kg 100kg

Product Advantage

Pro3-xj1

Multipurpose machine

Cutter-plotters with 50w laser power are multi-purpose machines that can handle both laser and blade cutting. They offer precision and versatility for a range of applications.

Cut time-consuming cutting tasks down with a laser and blade cutter plotter – they can be used to quickly and accurately complete cutting jobs. These tools are great for small to large businesses and can save you time, effort and money.

Provided precise and efficient solutions

Laser cutter plotters offer a precise and efficient solution to cutting materials up to 1mm in thickness. Additionally, the included blade can help you achieve detailed cuts in materials as thin as 0.5mm. Whether you are looking for accuracy or intricate cuts in your projects, laser cutter plotters can help you get the job done.

Laser and blade cutters are designed to cut a variety of materials, including kraft paper, reflective film, plastic sheet, and leather. Cut with precision and accuracy with these cutting tools and create the perfect shape and size that your project needs.

Pro3-xj2
Pro3-xj3

Product features

Cutting 1mm and 0.5mm Thickness

Harness the Power of Laser & Blade

9x faster cutting power.

Product Details

Pro3-xj5
Inside
Pro3-xj6
Laser Printer
Pro3-xj7
WechatIMG1
Pro3-xj8
Laser Engraving Knife

Faqs

1
Q: Are you trading company or factory?
A: We are trading company with our own factory.
2
Q: How long is your delivery time?
A: It is according to your quantity. if you just want to buy one set sample .it needs 1-3 working days .if the goods are in stock. or it is 4-5days if the goods are not in stock.
3
Q: Do you provide free sample ?
A: No, we could offer the sample but you should pay the cost of freight/sample.
4
Q: How about the shipping mode?
A: by express/air/sea/train both ok.as per the buyer request to delivery. you know the machine freight charge is higher. in general , we just suggest the buyer can accpet the sea shipment.
5
Q: How about the freight?
A: You can find the forwarder agent by yourself ,if you have not, we can quote the cheaper freight charge for you.
6
Q: How to order?
A: You can contact with us by email or calling us, we can make the PI to you.
7
Q: What is your terms of payment ?
A: Payment<=$30000, 100% in advance. Payment>=$30000, 50% T/T in advance ,balance before shipping. If you have another question, pls contact us .


Company Features

· has been committed to the R&D and production of laser plotter machine since its inception.

· has introduced advanced manufacturing equipment from overseas. has a group of highly educated, international, and professional laser plotter machine talents.

· We abide by environmentally friendly operating procedures. We properly maintain production, pollution control, and waste disposal processes that could have a significant impact on the environment.


Product Details

strives excellent quality by attaching great importance to details in the production of laser plotter machine.


Application of the Product

laser plotter machine of can play a role in various industries.

insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.


Product Comparison

The laser plotter machine of has been improved greatly in the following aspects.


Enterprise Advantages

Our company has a competent and aspirant team, with strict style. Based on the hard work and cooperation, our team members have overcome many difficulties during the development and we make contribution to our rapid and good development.

has built a comprehensive service model with advanced concepts and high standards, so as to provide systematic, efficient and complete services for consumers.

Guided by the market, constantly carries out industrial upgrading. We run the sincerity-based business with a focus on mutual benefits. Our goal is to achieve international development based on the local market. Our commitment is to provide consumers with quality products and professional services.

Established in our company has a production history of years and accumulated rich production experience.

We keep seeking new development ideas and now market has been expanded all over the world.
