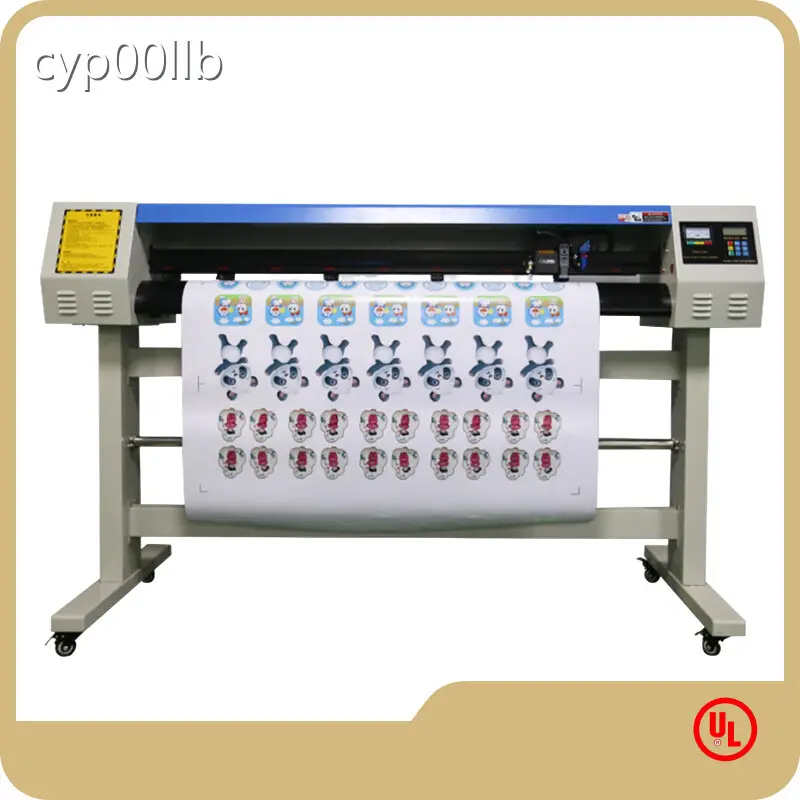

Contour Cutter Plotter Roland Standard Blade RS232 Serial Port Or USB 50W
Product details of the contour cutter plotter
Product Introduction
The production of contour cutter plotter adopts excellent quality raw materials that are obtained from the licensed vendors of the market. The product has been approved by experts to be good in every aspect, such as performance, durability, practicality, and so on. Our world famous designers can provide remarkable designs for contour cutter plotter.
Product Display
Product parameters
| Model no. | HK-980 LASER | HK-1380 LASER | HK-1730 LASER |
| HK-980 LASER AUTO | HK-1380 LASER AUTO | HK-1730 LASER AUTO | |
| HK-980 LASER PRO | HK-1380 LASER PRO | HK-1730 LASER PRO | |
| HK-980 LASER CCD | HK-1380 LASER CCD | HK-1730 LASER CCD | |
| Max Feeding Width | 980mm | 1380mm | 1730mm |
| Max Cutting Width | 820mm | 1220mm | 1570mm |
| Driving Motor | stepper motor | ||
| PC Interface | RS232 serial port or USB | ||
| Laser Head | Designed by HAOKE | ||
| Laser Mode | Hollow, engraving, cutting, drawing | ||
| Blade | Roland standard blade | ||
| Power Supply | AC220V/110V +/- 5%, 50HZ-60HZ | ||
| laser Tube Power | 50W | ||
| Cutting Speed | Min.10mm/S ~ Max. 800mm/S | ||
| Cutting Pressure | Min. 10g ~ Max. 500g（Knife mode） | ||
| Resolution | 0.0254mm/step | ||
| Repeat Accuracy | 0.0127mm | ||
| Language Format | DM/PL compatible | ||
| Baud Rate | 38.4K | ||
| Data Transmission | 8 data bits, 0 parity bit, 1 stop bit | ||
| Control Panel | LCD display + key + switch + test + current regulation + current indication | ||
| Min Character | Chinese character: 3mm; letter: 2mm; (varies depending on character font and media) | ||
| Laser Current Range | 0-20mA | ||
| Interface Type | Serial port/USB | ||
| Applicable Material | Soft and thin nonmetal material, such as paperboard, cutting vinyl | ||
| Applicable Range | Currently, this machine has been widely used for apparel, label, outdoor signs, lamp-box, screen printing, car decoration, etc. | ||
| Floor Stand | Yes | Yes | Yes |
| Machine Size | 1420mm*700mm*1060mm | 1820mm*700mm*1060mm | 2170mm*700mm*1060mm |
| Packing Size | 1570mm*535mm*490mm | 1950mm*490mm*450mm | 2300mm*490mm*450mm |
| GW | 70kg | 85kg | 100kg |
Product Advantage
Ideal solution
If you need to create precise designs and shapes for any materials, laser plotting is the ideal solution. It comes with three width sizes, you can chose the machine size as per you customize your materials to get the desired results. And best of all, there is no limit to the length of material you can accommodate. Laser plotting makes it easy and efficient to get the precise results you need!
Get all your cutting needs in one set with our 3-in-1 cutter
Experience precise, fast cutting with our powerful laser technology, hard and dense materials with the durable blade cutting, and complex designs with our auto contour feature. Get all your cutting needs with just one device.
Product features
All Cutting Solutions in One;
One machine with laser ,blade and contour function.
Product Details
